New York, New Haven, & Hartford

(New Haven)

Freight & MOW Equipment Folio Diagrams 1976

A Modeler's Reference

Edited & restored by BHI Publications

This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $34.99 + s&h

(s&h is adjusted correct for US addresses only, Int'l orders contact us)

In addition to the standard freight equipment this book also includes some

MOW equipment such as spreaders and cranes as well as Cabooses.

The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in use. They also provided unit number data.

This data is something that each railroad had on hand for their crews operating

the trains and the shops in the areas concerned. In the case where repairs

were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing.

This book has 74 pages with 74 Diagrams, Illustrations, & tables.

BHI front page      Quick Pic Books     Aviation front page     Bookmarks & Magnets

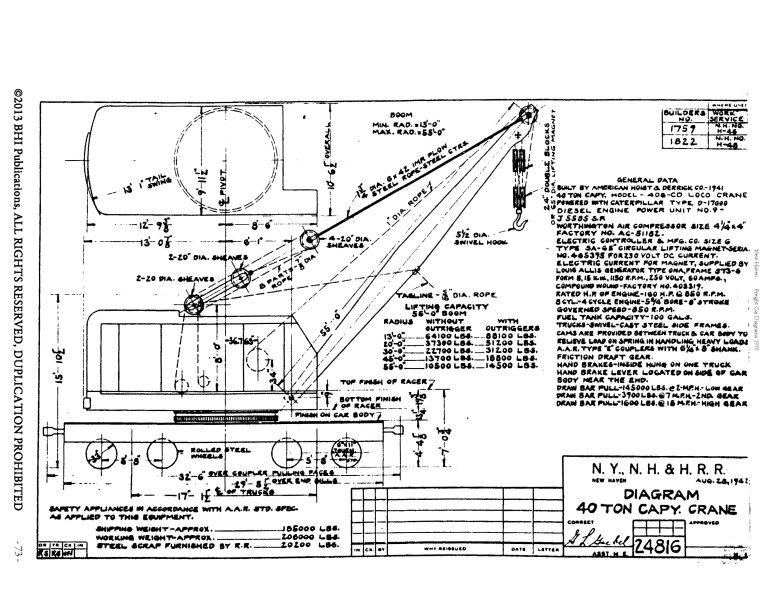

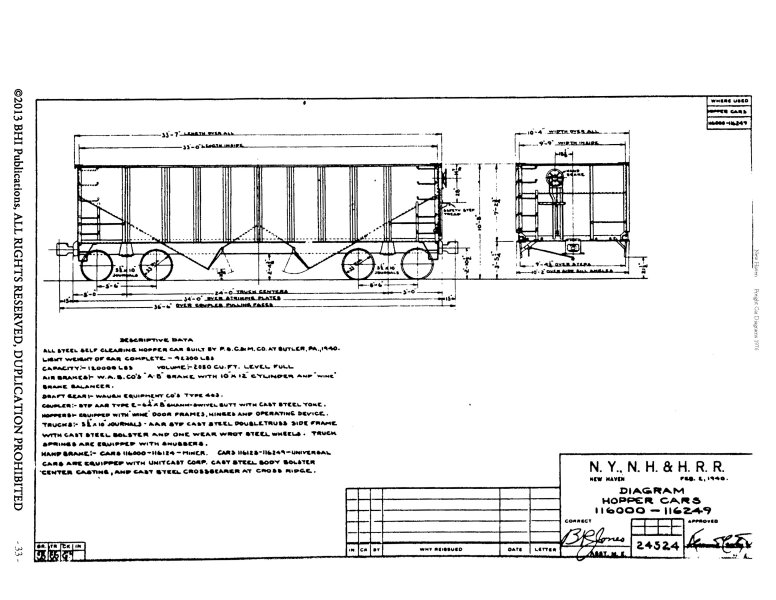

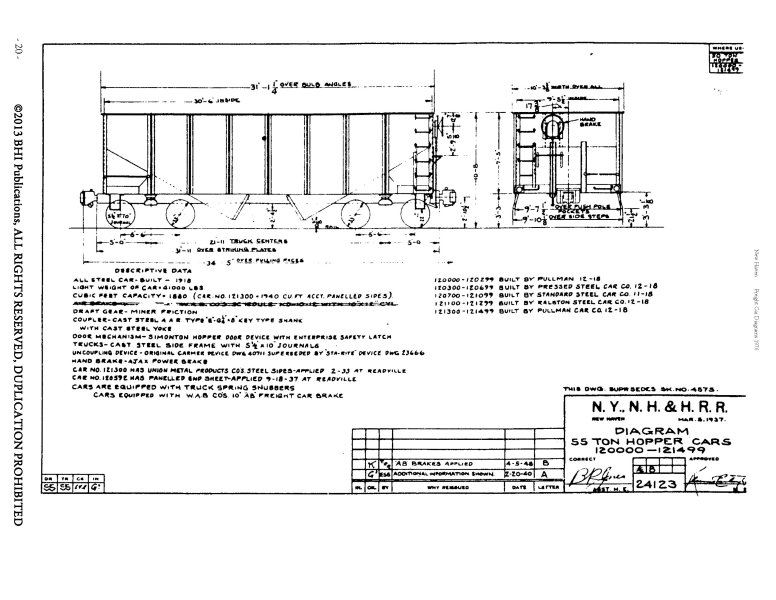

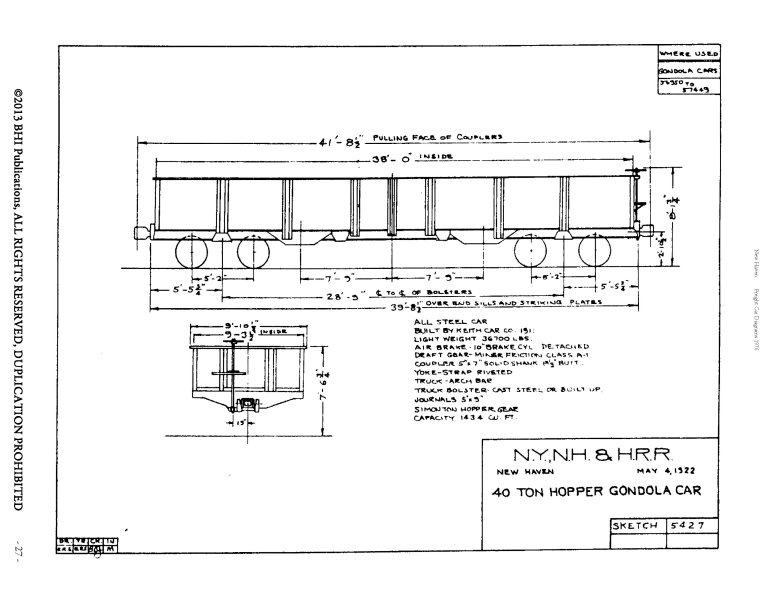

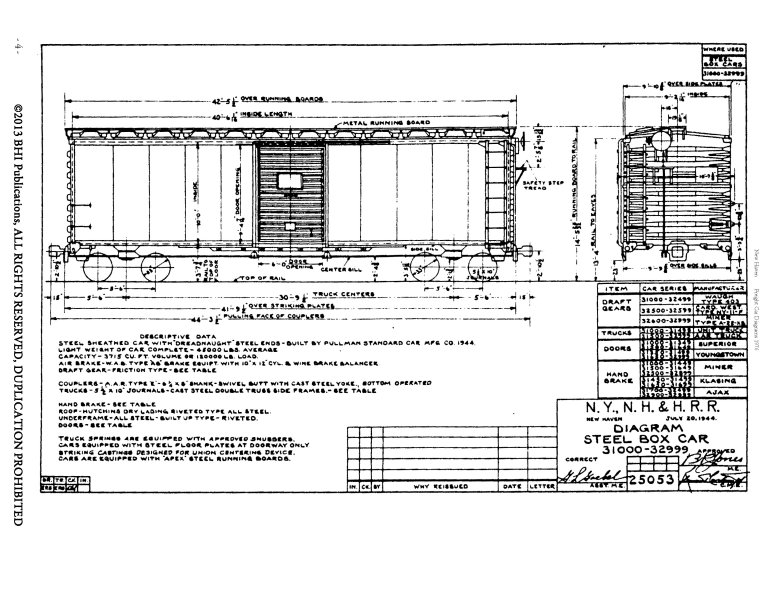

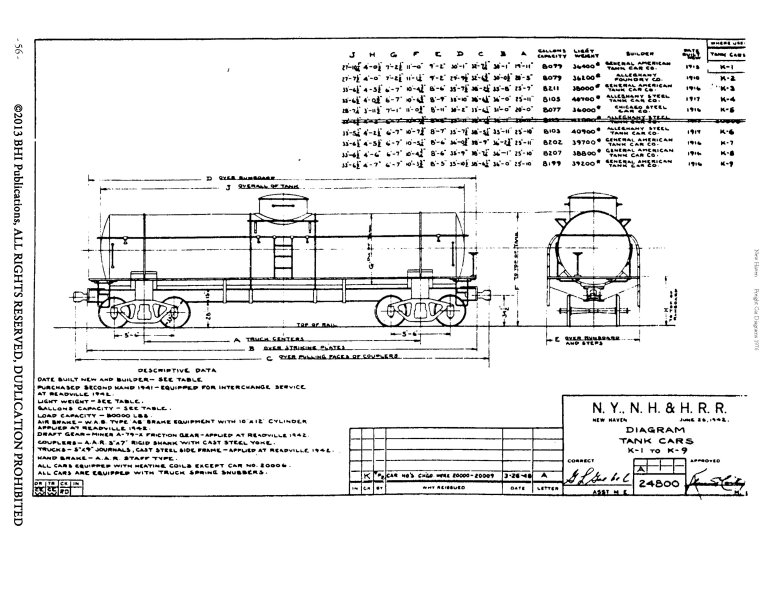

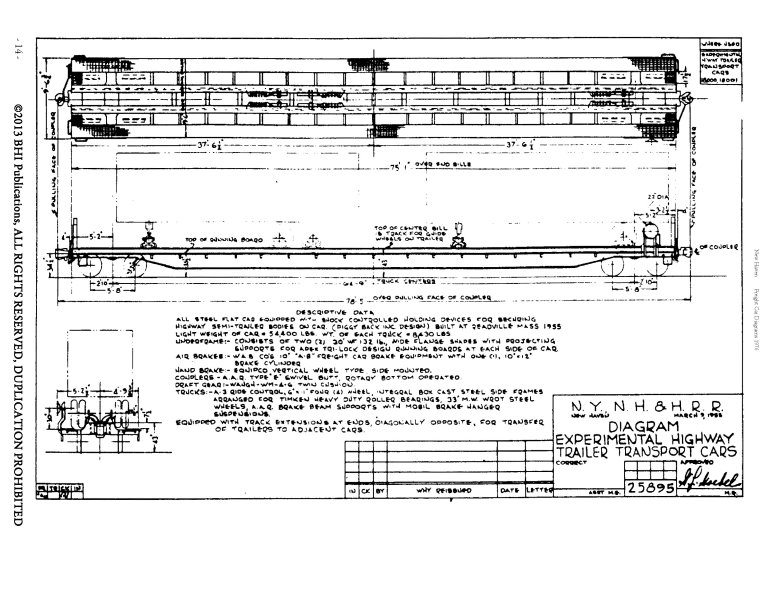

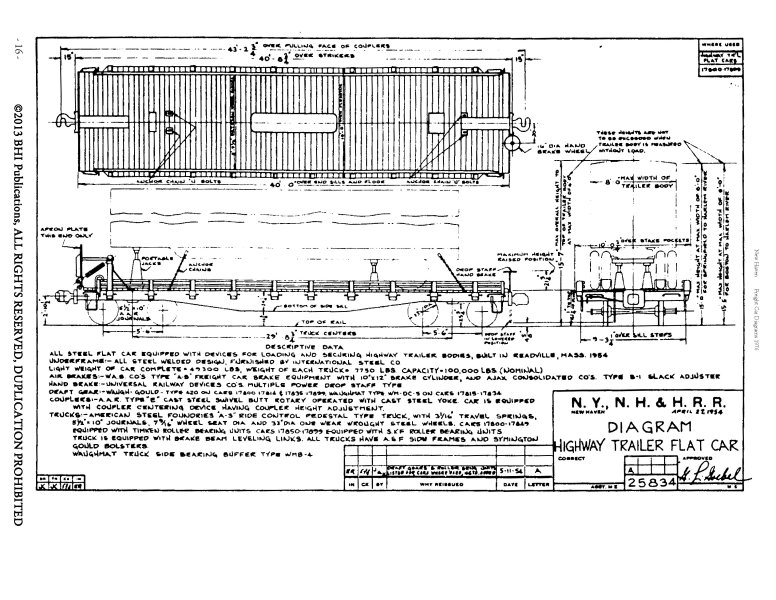

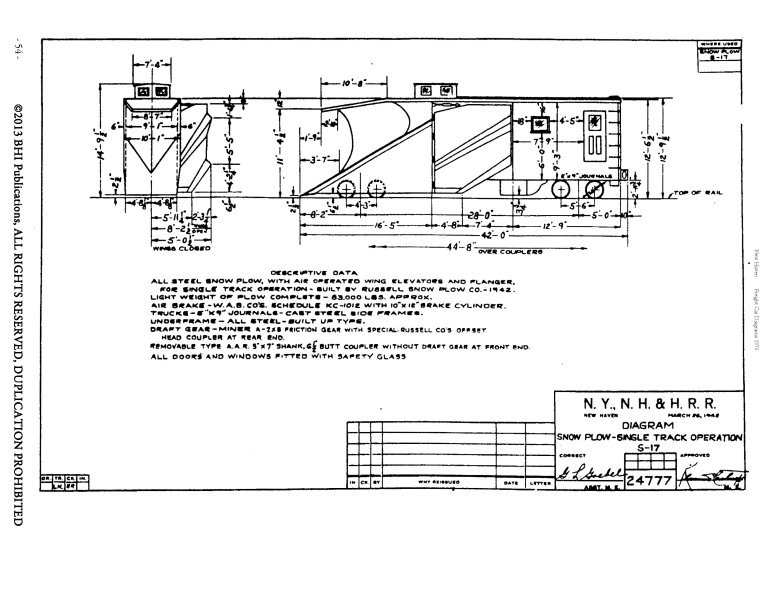

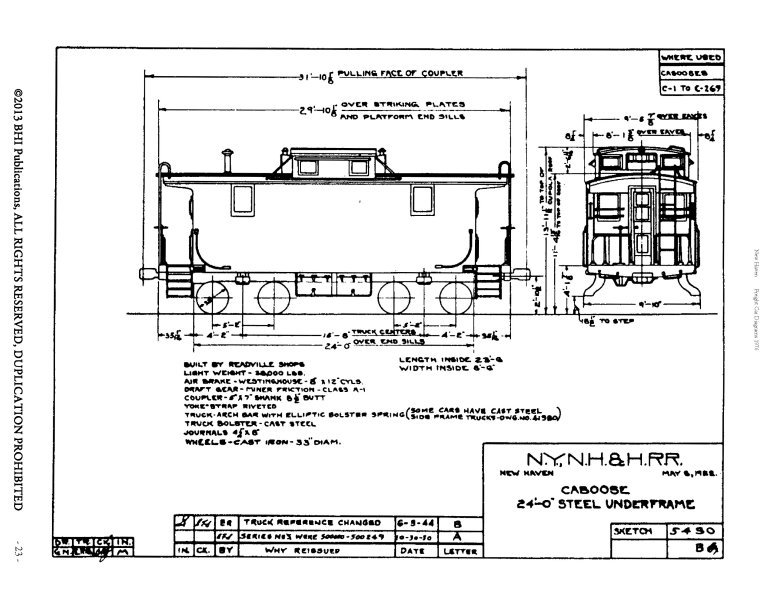

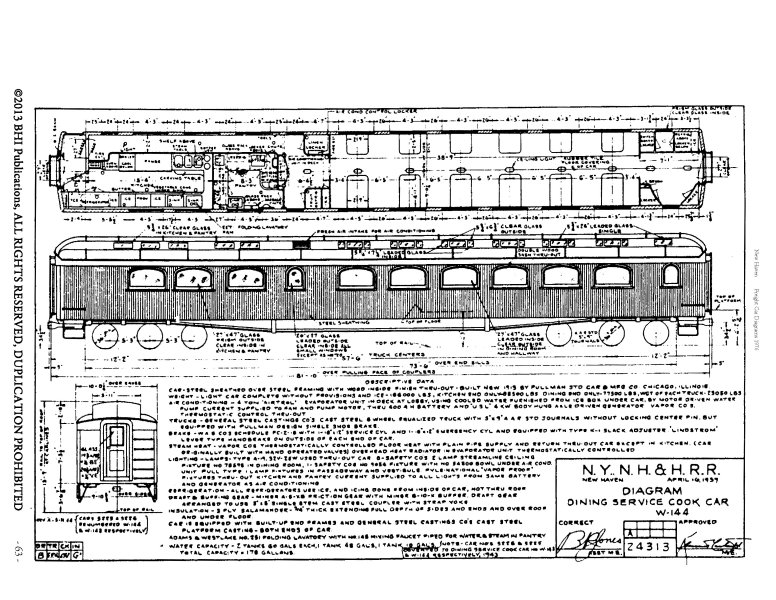

Below are some sample pages from the book.

Because of the actual USPS shipping costs, we highly recommend getting more than 1 book/title at a time. If there is no "Add-To-Cart" button on a specific title's webpage, contact us directly at:   [email protected]

to add any of them to your order.

This shopping cart button gives the correct shipping to US addresses only. For current shipping rates outside the US please contact us at [email protected] or consult the USPS.com website. Shipping is based on the Medium Sized Flat Rate Priority Mail package.
