Missouri Pacific / Texas & Pacific

Locomotive Folio Diagrams 1963

A Modeler's Reference

Edited & restored by Tim Mulina, BHI Publications


This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.

Sample pages are below.

MSRP $29.99 + s&h
(s&h is adjusted correct for US Addr. only. Int'l Addr., contact us for correct rate e mail   [email protected] )
This book contains Folio drawings of the combined Missouri Pacific as well as the Texas & Pacific Railroads. The power ranges from small GE, Whitcomb, Portland, and Plymouth locomotive up to E Units, Baldwin AS Units and EMD GP Units.

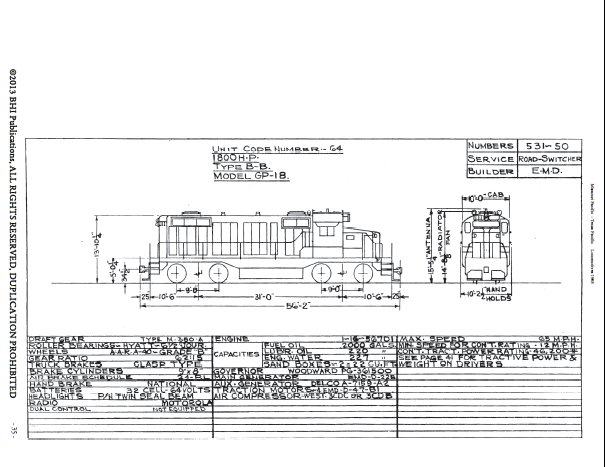

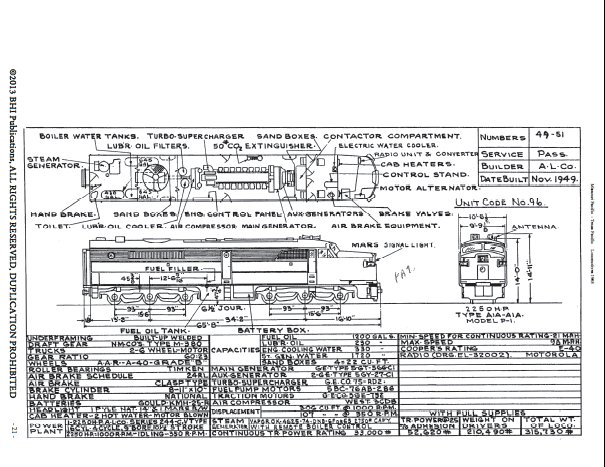

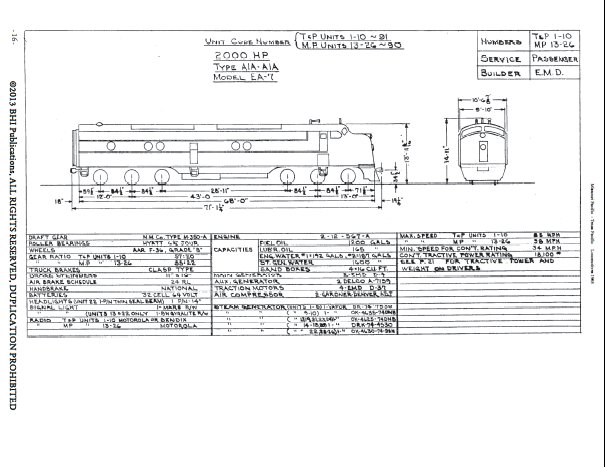

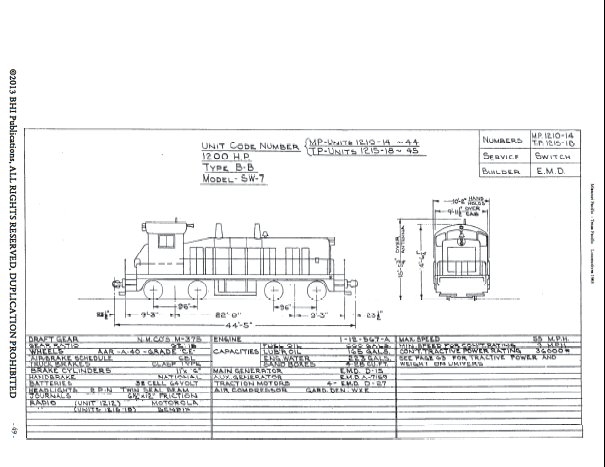

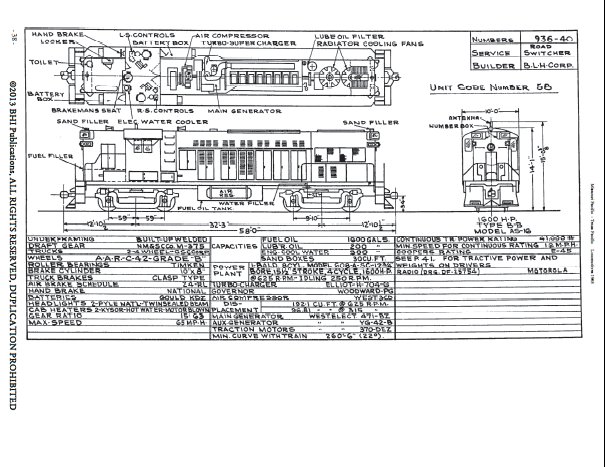

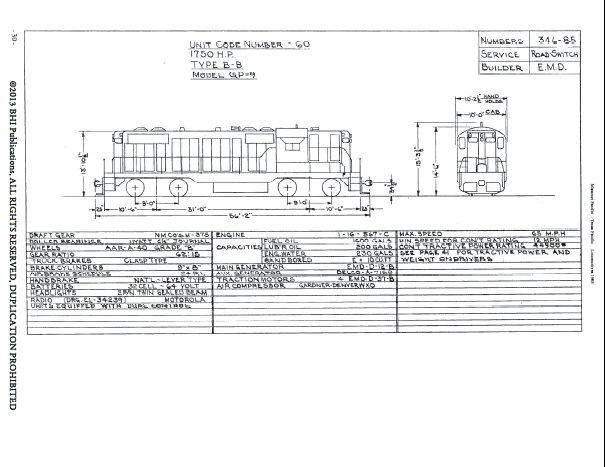

The drawings are essentially blueprints that a skilled employee could
recognize, repair, and service equipment that was in service.

This data is something that each railroad had on hand for their crews operating
the trains and the shops in the areas concerned. In the case where repairs
were necessary these were used to help restore damaged equipment.

Due to the poor quality of the originals many of the folios required editing
but where it did not interfere with viewing we left them alone.


This book has 61 pages with 61 folios & illustrations.

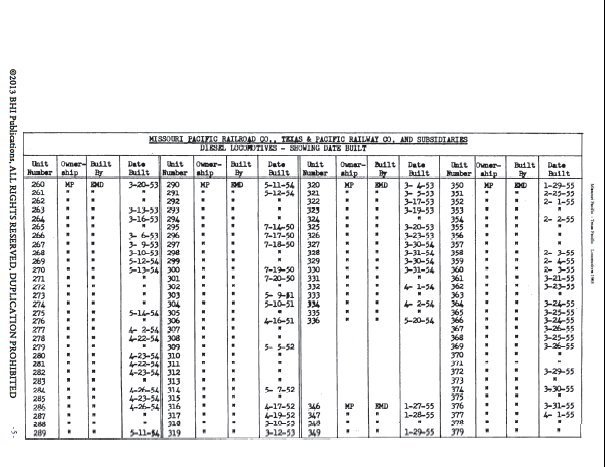

Below are some sample pages from the book.
Because of the actual USPS shipping costs, we highly recommend getting more than 1 book/title at a time. If there is no "Add-To-Cart" button on a specific title's webpage, contact us directly at:   [email protected]
to add any of them to your order.
This shopping cart button gives the correct shipping to US addresses only. For current shipping rates outside the US please contact us at [email protected] or consult the USPS.com website. It will be shipped in the Medium Sized Flat Rate Priority Mail package.
