Locomotive Folio Diagrams 1957
A Modeler's Reference
Edited & restored by Tim Mulina, BHI Publications
This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.
Sample pages are below.
MSRP $34.99 + s&h
(s&h is adjusted correct for US addresses only, Int'l orders contact us)
This book contains drawings of the motive power operating on the Erie Railroad
not long before it was merged into the Erie - Lackawanna Railroad. The power goes from early boxcabs and switchers to A-B-B-A lashups and early 4 axle GP Power.
The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in use. They also provided unit number data.
This data is something that each railroad had on hand for their crews operating
the trains and the shops in the areas concerned. In the case where repairs
were necessary these were used to help restore damaged equipment.
Due to the poor quality of the originals many of the folios required editing.
This book has 78 pages with 154 Diagrams, Illustrations, & Tables.

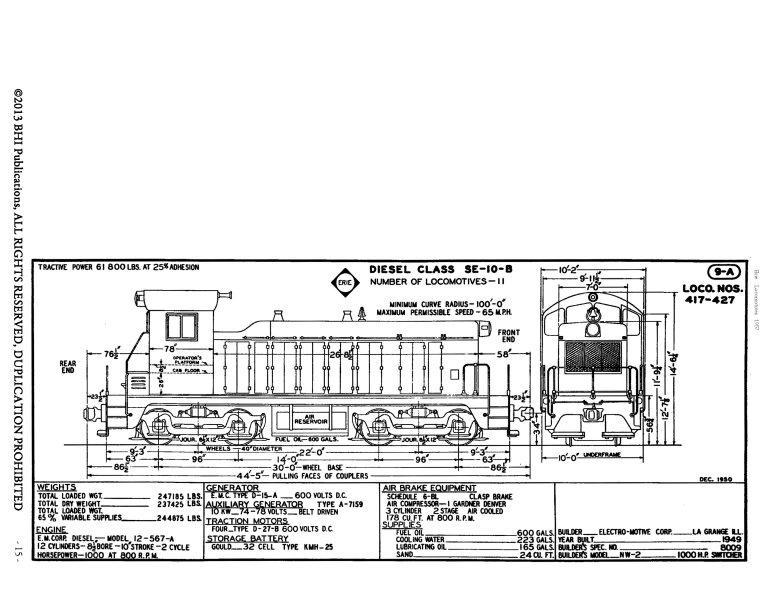

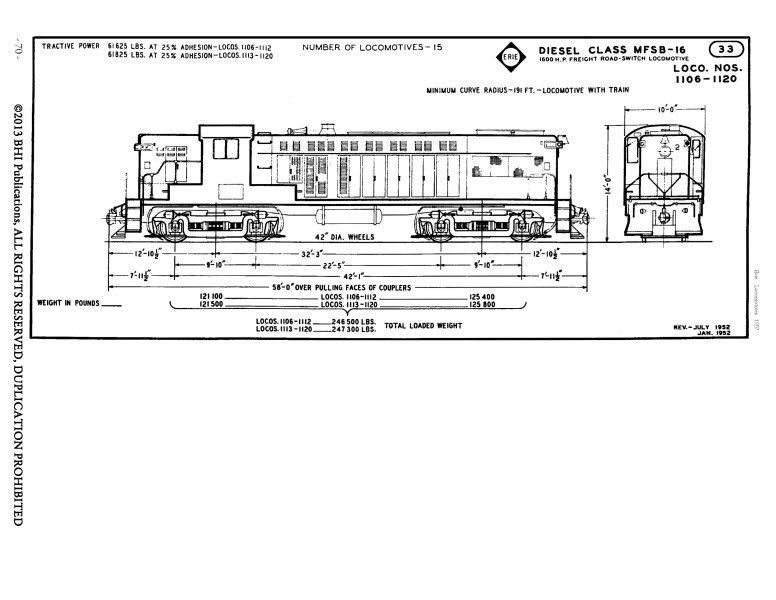

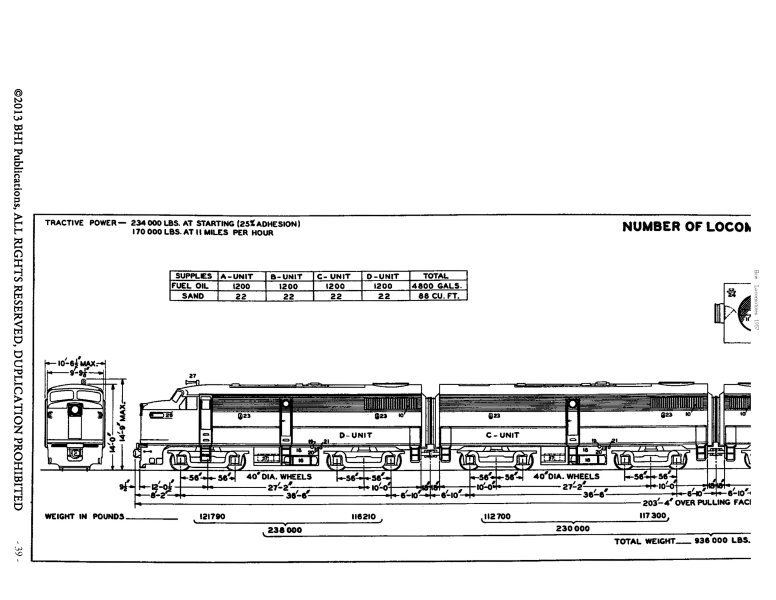

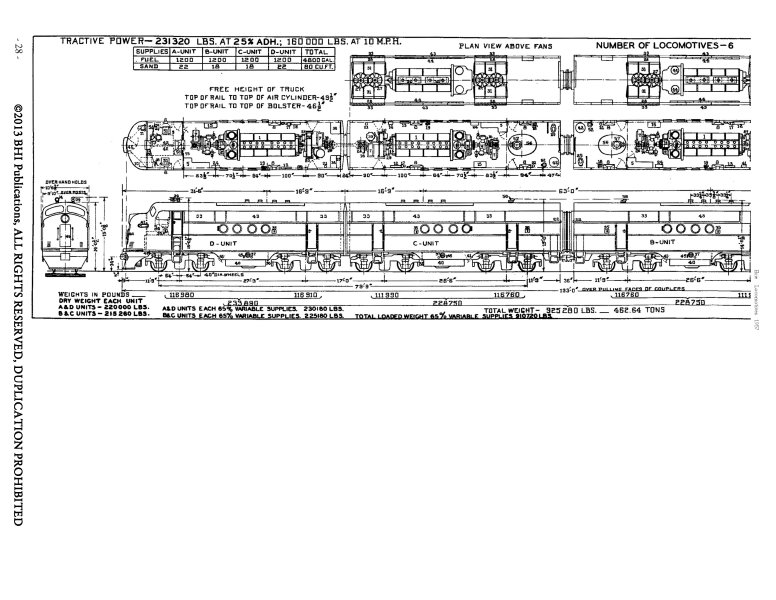

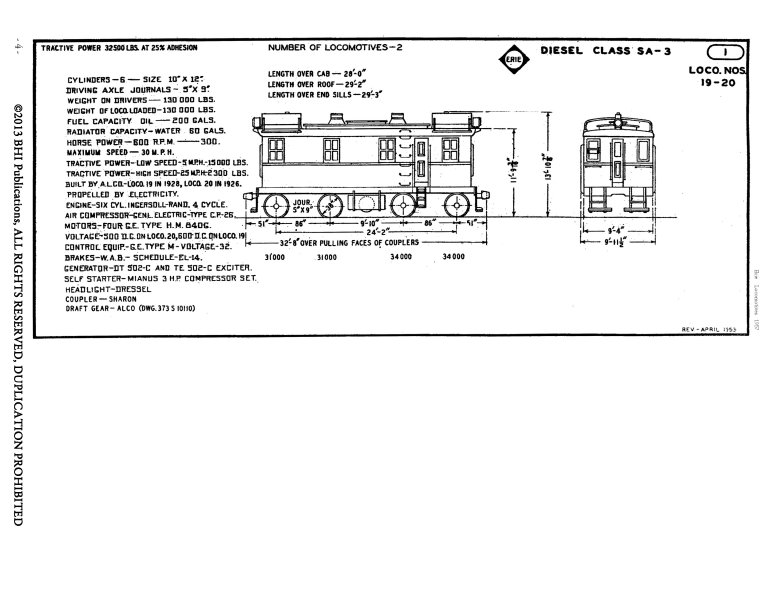

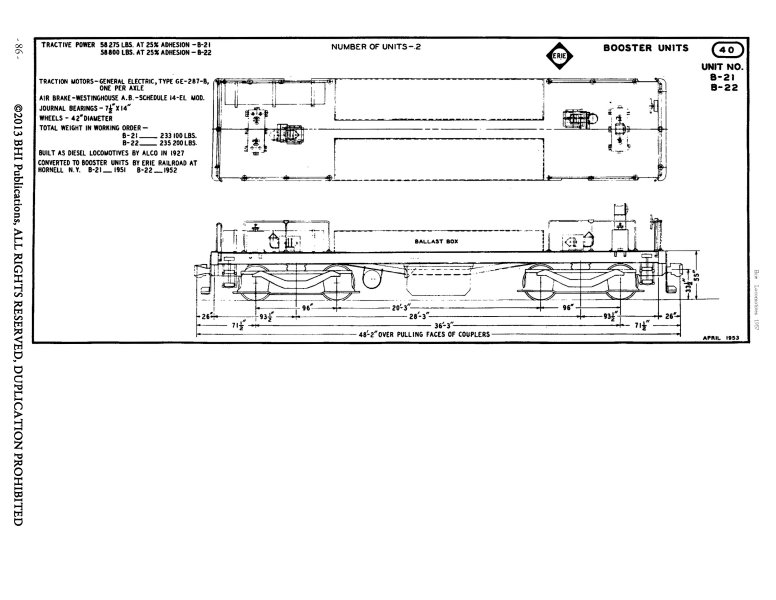

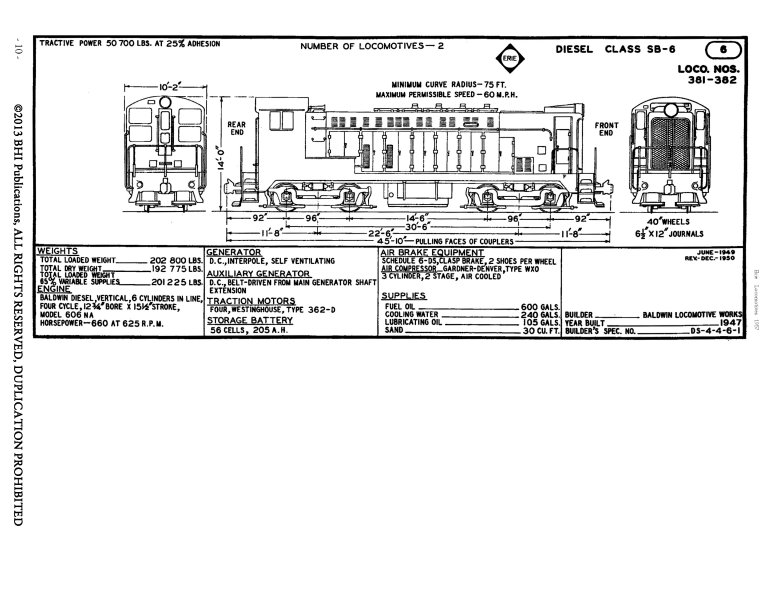

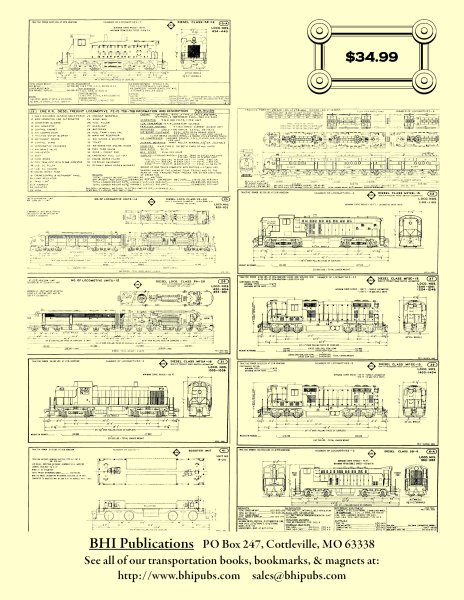

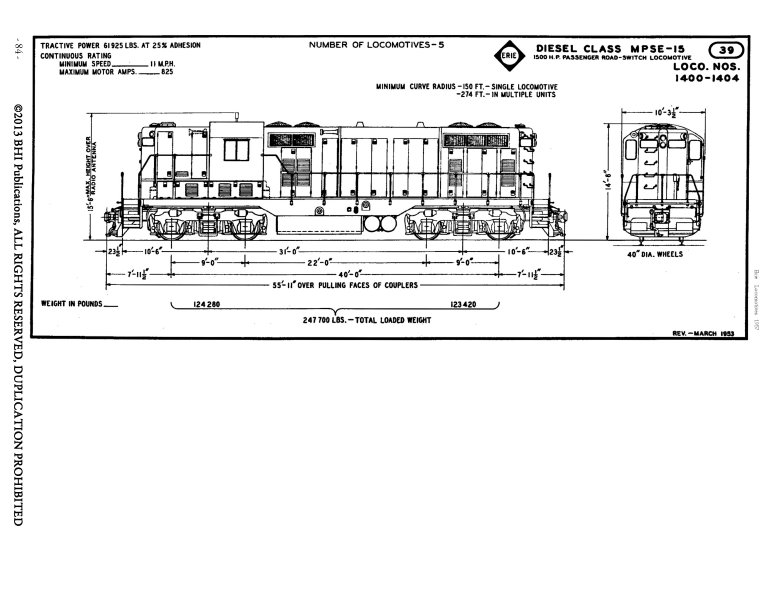

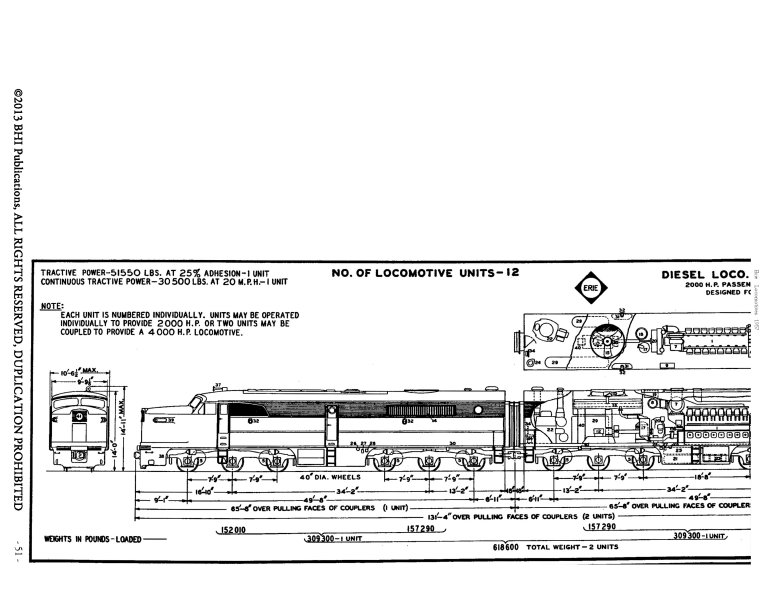

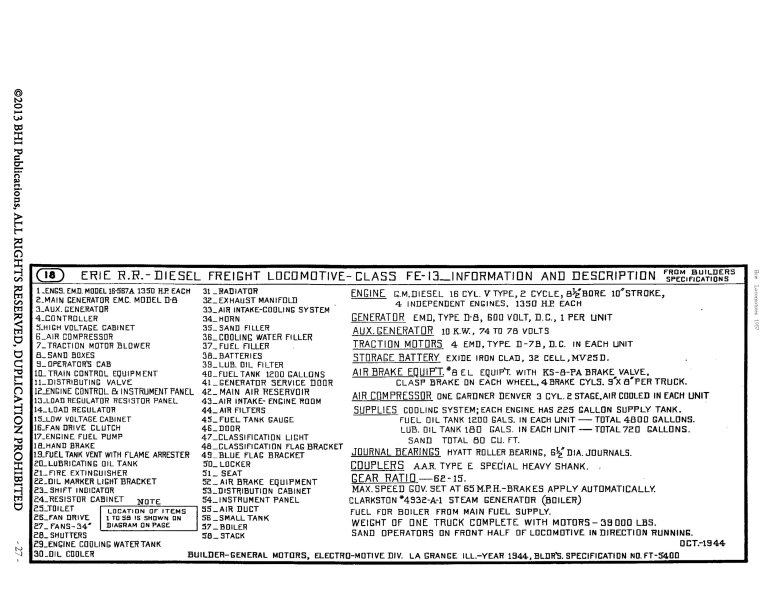

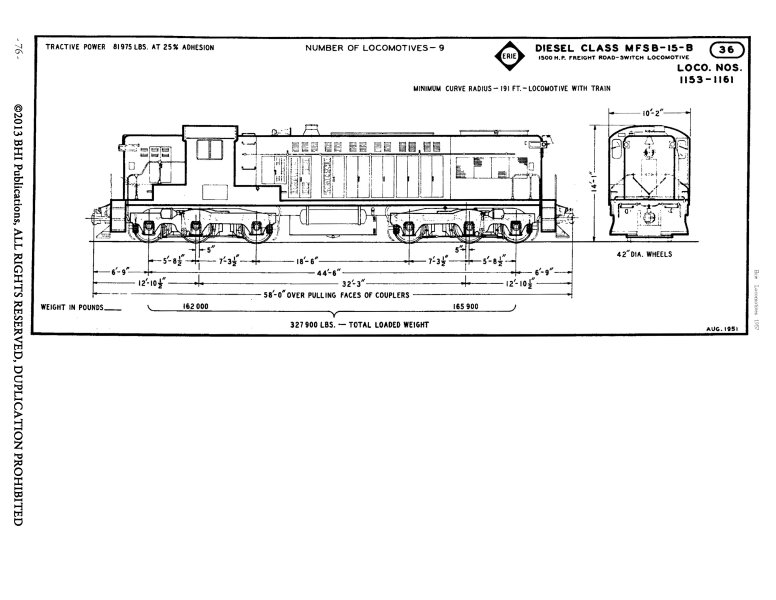

Below are some sample pages from the book.
