Denver & Rio Grande, D&RGW,
Rio Grande Southern Railroad
Folios/Blueprints of Narrow Gauge, Passenger Equipment from the following years: 1903, 1904, post-WW2 (undated), 1966, & 1968
A Modeler's Reference
Edited & restored by Tim Mulina, BHI Publications
This book has heavy duty, laminated cardstock covers and is 8 1/2" wide and 11" tall.
Sample pages are below.
MSRP $34.99 + s&h
This book has 91 full size folios.
This book was something that the RR had
on hand for their management and shops in
the areas concerned. Due to the poor quality
of the originals, the 1903/1904 folios
required extensive redrawing or editing.
The drawings are essentially blueprints that a skilled employee could recognize, repair, and service equipment that was in service. The original legend data on each drawing, which often gives additional information valuable
to modelers, is included on each folio.
The post-WW2 section covers those
pieces still left on the property after
the majority of the varnish was sold to
the Mexican railroads during 1943.
The majority of these cars are still in
operation on the Durango & Silverton RR

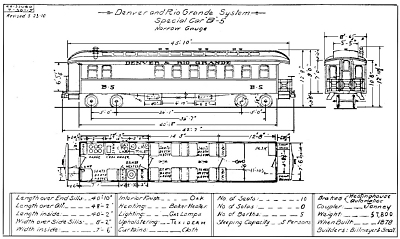

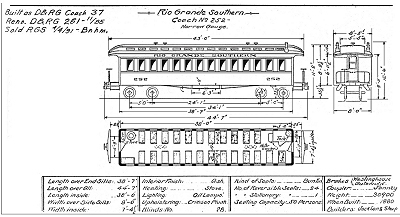

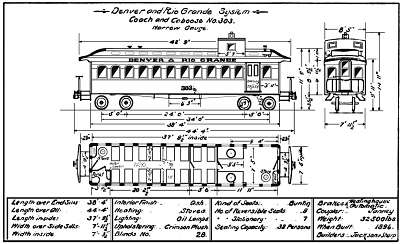

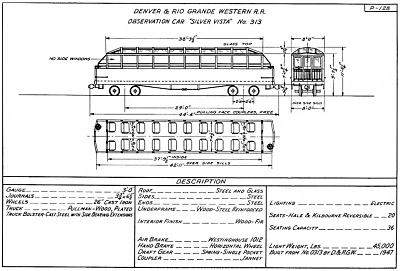

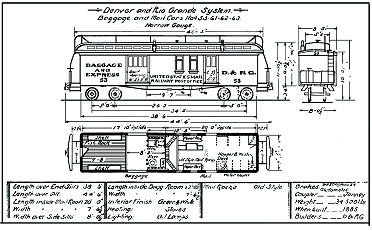

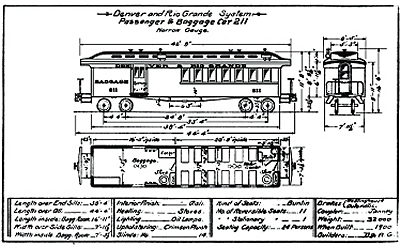

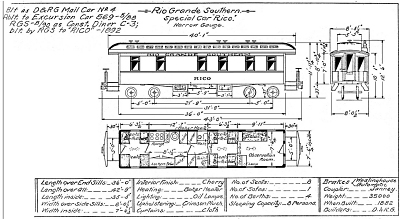

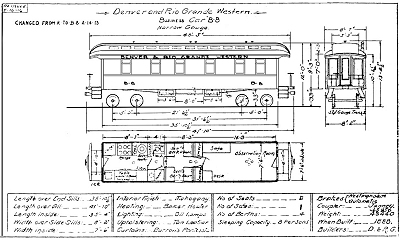

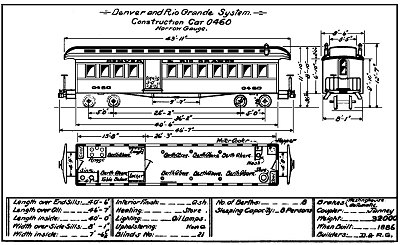

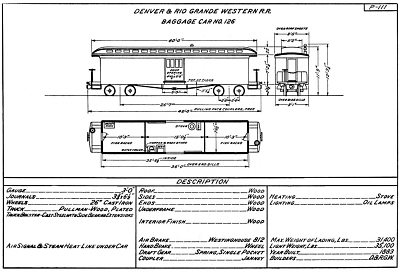

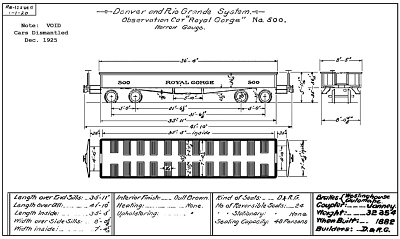

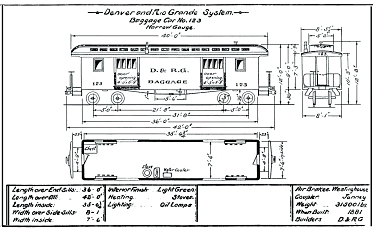

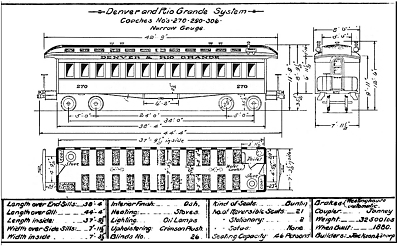

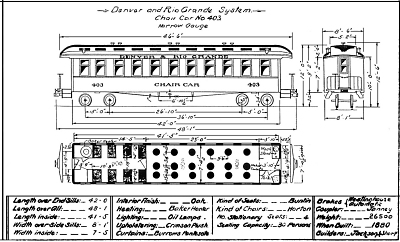

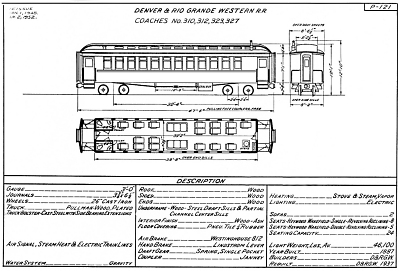

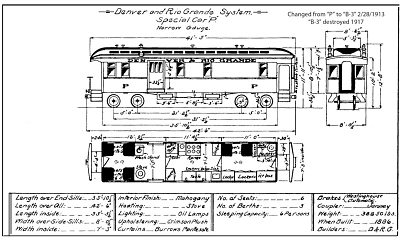

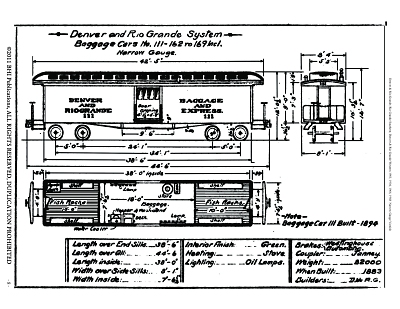

Below are some sample pages from the book.
Because of the actual USPS shipping costs, we highly recommend getting more than 1 book/title at a time. If there is no "Add-To-Cart" button on a specific title's webpage, contact us directly at: email@example.com
to add any of them to your order.

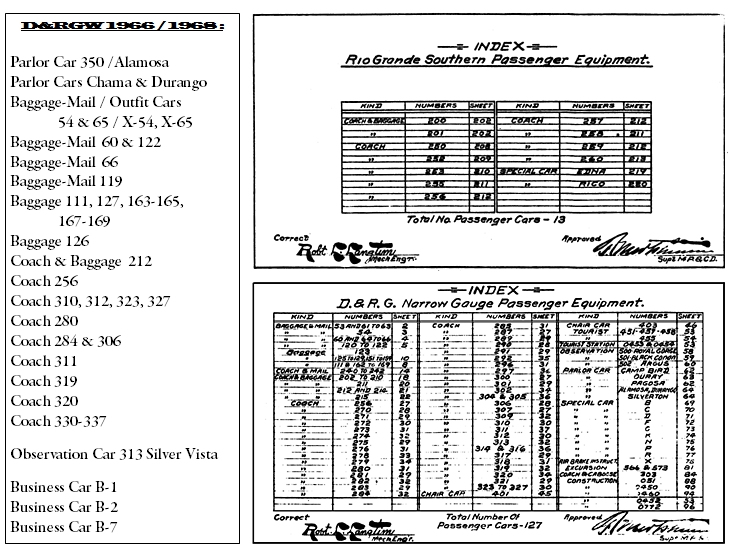

Above are the Indexes for these folios showing cars covered PLUS

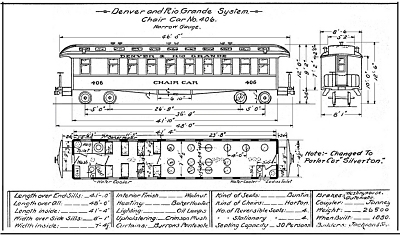

also included are the folios for: 406 prior to becoming Parlor Car SILVERTON;
350 & 351 prior to becoming Parlor Cars ALAMOSA & DURANGO;

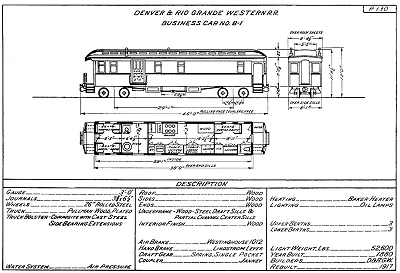

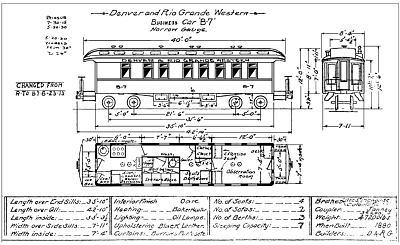

D&RG(W) Business Cars B-1, B-3, B-5, B-6, B-7 & B-8, & RGS B-21.
